| Capability | What We Support |

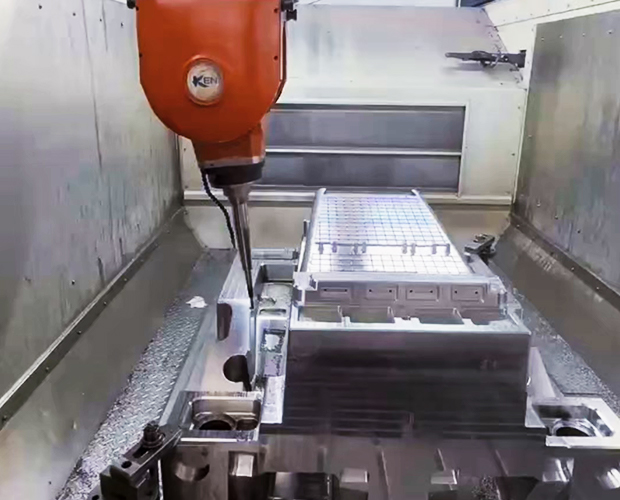

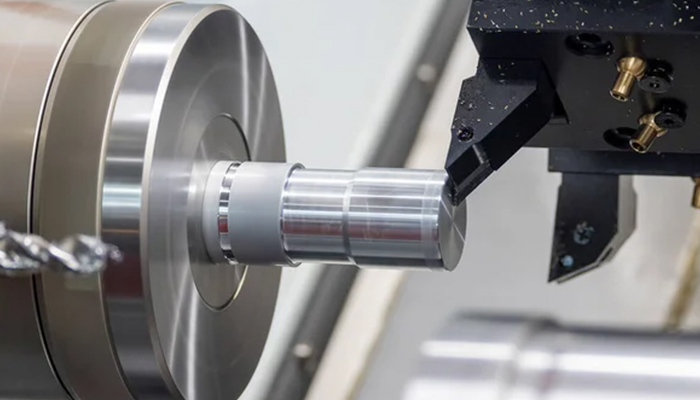

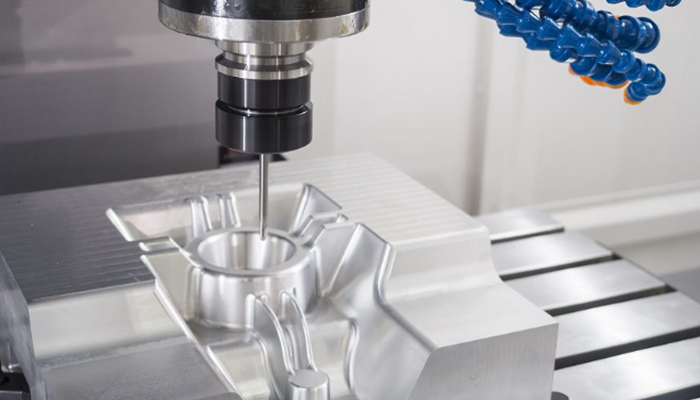

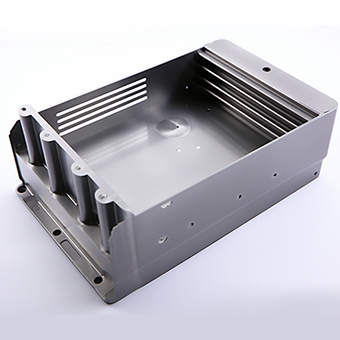

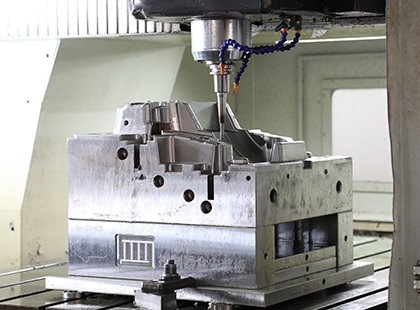

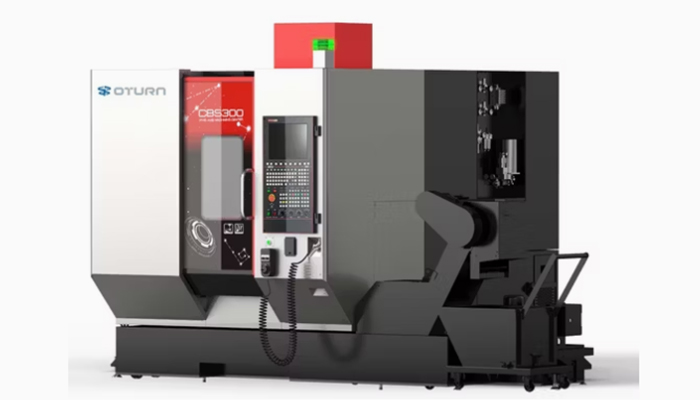

| Processes | CNC milling, CNC turning, mill-turn, mold machining; prototype to medium-volume production |

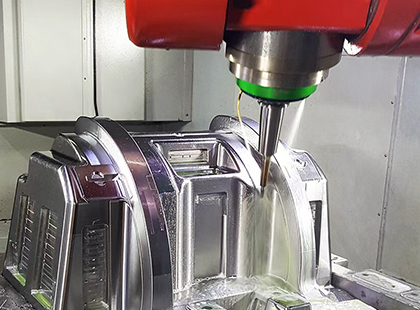

| Axis capability | 3-axis, 3+2 (positional), and 5-axis simultaneous machining |
| Work envelope (Milling) | Up to 800 × 500 × 400 mm (larger sizes available upon request & review) |
| Max size (Turning) | Up to Ø280 × 800 mm (larger sizes available upon request & review) |
| Typical tolerances | ±0.05 mm standard; ±0.01–0.02 mm achievable for critical features after engineering evaluation |
| Surface finish (Ra) | Ra 3.2 μm as-machined typical; Ra 1.6 μm on request; Ra 0.8 μm with precision polishing / secondary finishing (feature-dependent) |
| Materials | Aluminum (6061/7075), stainless steel (303/304/316), carbon steel, tool steel, titanium (Ti-6Al-4V), brass/copper; engineering plastics (ABS, PC, POM, PA, PEEK, PTFE, etc.) |
| Minimum feature guidance | Thin walls down to 0.4 mm (metals) / 0.8 mm (plastics) (geometry-dependent); small holes ≥ Ø0.6–0.8 mm; threads from M1.6 / #1-64 and up |

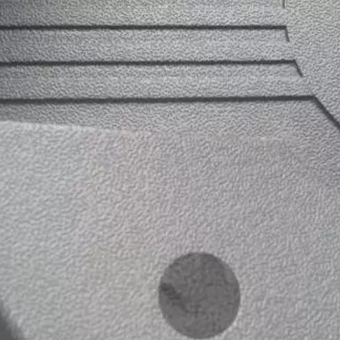

| Finishing options | Anodizing (Type II/III), bead blasting, electropolishing, passivation, plating (Zn/Ni), powder coating/painting, laser marking, heat treating, deburr/tumble, texturing |
| Inspection & reports | In-process + final inspection; CMM & 2D/3D scanning available; dimensional report, FAI (AS9102-style), PPAP available upon request; material certs (MTR/CoC) provided |
| File formats | STEP (.stp/.step), IGES (.igs), Parasolid (.x_t), STL, SolidWorks (.sldprt), and 2D drawings (PDF/DXF/DWG) for GD&T & critical notes |
