How Is A Plastic Injection Mold Made? (Step-by-Step Guide)

If you've ever wondered how intricate plastic parts—from automotive dashboards to medical devices—are produced by the millions, the secret lies in the injection mold.

Building a custom plastic injection mold is a masterclass in high-precision mechanical engineering. It turns raw steel into an asset capable of replicating complex geometry with sub-millimeter accuracy under high pressure.

Whether you are a product designer or a sourcing manager, understanding how an injection mold is made helps you optimize your project timeline and budget. Here is the step-by-step breakdown of the mold manufacturing process.

Step 1: DFM Analysis & Mold Design

Before cutting any metal, engineers evaluate the part geometry through DFM (Design for Manufacturability).

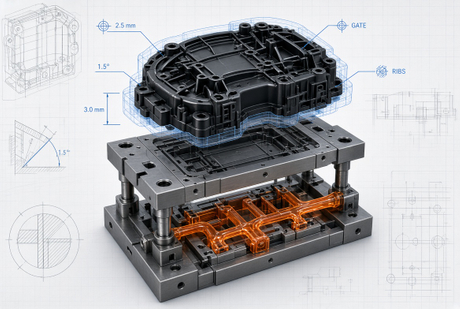

Using advanced 3D CAD and Moldflow simulation software, toolmakers optimize wall thickness, parting lines, draft angles, and gate locations. This critical stage identifies potential defects like sink marks, air traps, or warping before production begins.

A significant portion of success relies on thorough Mould Design—ensuring smooth material flow and reliable cooling channels.

Step 2: Selecting Quality Tooling Steel

Once the design is finalized, raw steel blocks are selected based on expected production volume and plastic resin properties:

Pre-hardened Steel (e.g., P20): Ideal for low-to-medium production runs (up to 300,000 shots).

Hardened Stainless Steel (e.g., S136, NAK80): High corrosion resistance and mirror-like polish for medical, optical, or high-volume runs (1,000,000+ shots).

Choosing the right raw material ensures durability during thousands of high-pressure injection cycles.

Step 3: High-Precision Rough & Finish Machining

Carving hardened steel into complex mold cavities requires multi-axis machinery and sub-millimeter precision.

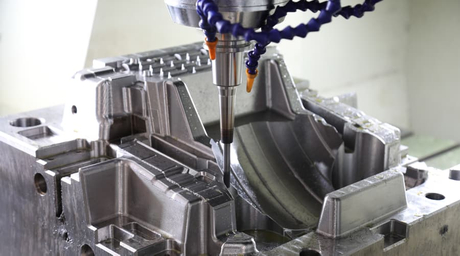

CNC Machining: Advanced CNC Machining mills remove bulk steel, forming core and cavity plates, cooling channels, and ejector pin holes.

EDM (Electrical Discharge Machining): For sharp internal corners, deep slots, or complex textures that traditional cutting tools cannot reach, high-precision spark erosion is used.

Wire EDM: Used for precise cutting of ejector pin holes and tight-tolerance mold inserts.

Step 4: Custom Benchwork, Fitting & Polishing

While machines do the heavy cutting, human craftsmanship finishes the mold.

Skilled toolmakers manually polish cavity surfaces to achieve the desired texture—ranging from standard matte to SPI A1 mirror finish. Components are then precision-fitted (flying/blueing test) to guarantee tight parting lines and zero flash during moulding.

The labor required varies across specialized applications:

Heavy-duty structural frameworks for Auto Parts Mould or precision components for Motorcycle Parts Mould.

High-gloss aesthetic finishes for Home Appliance Mould or durable tools for Household Product Mould.

Step 5: Mold Assembly & T1 Sampling

After all core, cavity, slide, and ejector systems pass inspection, the toolmaker assembles the complete injection mold.

The assembled tool undergoes its T1 Trial on a Plastic Injection Moulding press. Plastic resin is injected under actual working pressure to evaluate part dimensions, surface quality, and cycle times. Any necessary adjustments are made before mass manufacturing begins.

Frequently Asked Questions (FAQ)

Q1: What is the most critical step in making an injection mold?

The DFM & Mold Design stage is the most critical. Fixing a design flaw on a 3D model costs zero extra material, whereas modifying hardened steel after machining is extremely difficult and expensive.

Q2: How long does it take to manufacture a custom plastic mold?

Standard lead times range from 5 to 8 weeks, depending on mold size, structural complexity (e.g., lifters, slides, hot runners), and required surface polishing.

Q3: What is a T1 trial in mold making?

A T1 trial is the first test run of a newly built mold on an injection moulding machine. It produces sample plastic parts used to verify dimensions, surface aesthetics, and functional fit.
