A plastic part may look perfect on a 3D screen, but a successful design must do more than look good. A plastic part must also fill correctly, cool evenly, release from the mold smoothly, and remain stable during mass production. This is where DFM in injection molding becomes important.
DFM in injection molding, or Design for Manufacturing, is an engineering review used to evaluate whether a plastic part design is suitable for injection molding before mold manufacturing begins. DFM analysis considers part geometry, material selection, wall thickness, draft angles, gates, parting lines, ejection, and other factors that can affect mold cost and production quality.
For companies developing automotive parts, household products, electronic housings, or other plastic components, early DFM analysis can help identify manufacturing risks while design changes are still relatively easy to make. A professional plastic injection mold manufacturer can use DFM analysis to connect product design requirements with practical mold manufacturing solutions.
DFM in injection molding means reviewing and optimizing a plastic product design before the injection mold is manufactured. The purpose is not simply to determine whether a plastic part can be molded. The purpose is to determine whether the plastic part can be molded efficiently, consistently, and economically.
During DFM analysis, engineers examine how the plastic part will interact with the injection molding process and the future mold structure. A design may technically be manufacturable but still require complicated sliders, lifters, difficult ejection, excessive machining, or additional mold modifications. DFM analysis helps identify these issues before mold steel is cut.
A good DFM process connects product design, material selection, mold design, production requirements, and quality expectations. Early communication between the product designer and plastic injection mold manufacturer can make later mold development more predictable and reduce unnecessary design changes.
The most important reason to perform injection molding DFM before tooling is simple: changes are easier to make in a digital model than after a physical mold has been manufactured.
A problem with wall thickness, draft angle, undercuts, or gate location may appear small during product development. However, the same problem can influence mold structure, machining requirements, ejection performance, product appearance, and production stability. Once mold components have been machined, correcting the original design can require additional engineering work and mold modification.
DFM analysis also improves communication between product designers and mold engineers. Instead of discussing a problem only after the first mold trial, both sides can review the same 3D model and determine practical solutions before manufacturing begins. This makes DFM particularly valuable for complex automotive plastic parts, large household products, and other projects with strict appearance or dimensional requirements.
For a plastic injection mold manufacturer, DFM is therefore more than a design inspection. DFM is an early-stage engineering process that helps align product requirements with mold construction and injection production.

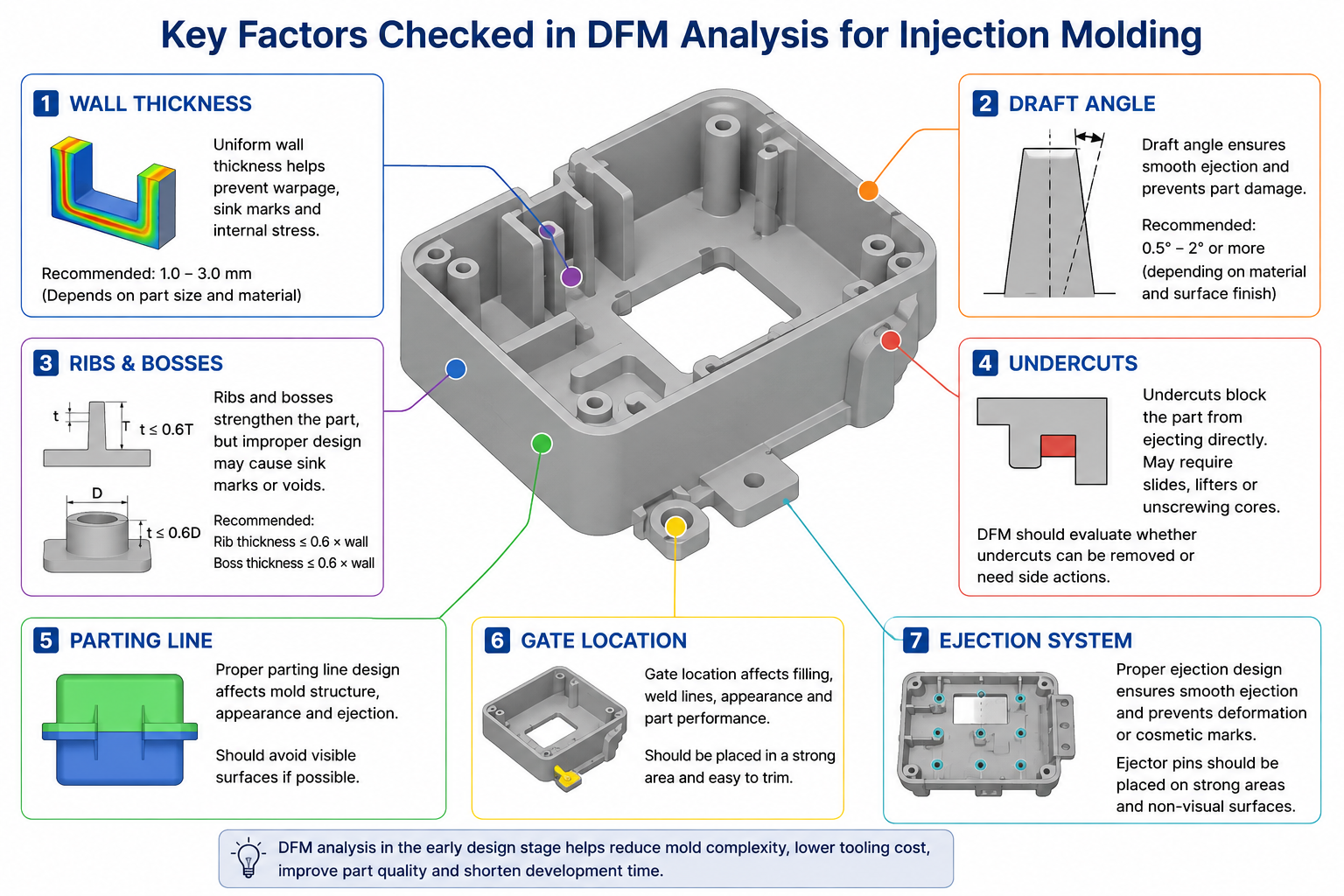

A professional DFM analysis normally reviews several major areas of the plastic part and its future mold.
Wall thickness should be considered carefully because large differences in thickness can create uneven cooling and shrinkage. Uneven cooling can contribute to defects such as sink marks, warpage, and internal stress.
A better design approach is to maintain relatively consistent wall thickness whenever the product function allows. When thickness changes are necessary, gradual transitions are generally easier to manufacture than sudden changes.
Draft angles help the molded part separate from the mold during ejection. Vertical surfaces with insufficient draft can create excessive friction, surface damage, or ejection problems.
The appropriate draft angle depends on factors such as material, surface finish, cavity depth, texture, and mold construction. There is no single draft value that works for every plastic part.
Ribs and bosses provide structural support without making the entire part unnecessarily thick. However, oversized ribs or bosses can create thicker plastic sections that cool differently from surrounding areas.
During plastic injection mold design, engineers review the position, thickness, height, and connection of ribs and bosses to balance strength, appearance, and manufacturability.
Undercuts prevent a plastic part from being removed directly in the mold opening direction. Depending on the product structure, undercuts may require sliders, lifters, collapsible cores, or other special mechanisms.
DFM analysis identifies undercuts early and allows engineers to evaluate whether the feature can be redesigned or whether additional mold mechanisms are justified.
The parting line determines where the mold separates and can affect both mold construction and product appearance. A well-planned parting line can simplify mold construction, improve ejection, and keep visible parting marks away from important cosmetic surfaces.
The gate is the point where molten plastic enters the mold cavity. Gate position affects filling behavior, weld-line location, appearance, packing, and sometimes product performance.
Gate placement should therefore be considered during the DFM stage rather than treated as a final mold-detail decision.
One of the main benefits of DFM in injection molding is identifying potential problems before production tooling begins.
For example, an uneven wall design may increase the risk of sink marks or warpage. Insufficient draft may make ejection difficult. An unnecessary undercut may require a complicated side-action mechanism. A poorly positioned gate may create visible marks or undesirable weld lines.
DFM analysis gives engineers an opportunity to compare different solutions. The solution may involve changing the product geometry, moving a gate, adjusting a wall transition, changing the parting line, or modifying an internal feature. The best solution depends on product function, material, appearance requirements, production volume, and mold cost.
The goal of DFM is therefore not to remove every complex feature from a product. The goal is to make every complex feature intentional and manufacturable. A sophisticated automotive component may still require sliders, lifters, textured surfaces, or multiple gates, but DFM helps engineers determine how those features should be incorporated into the mold.
A professional DFM report provides a visual and technical summary of the manufacturing review. The exact format varies between projects, but a useful DFM report can include:
1.Product structure review

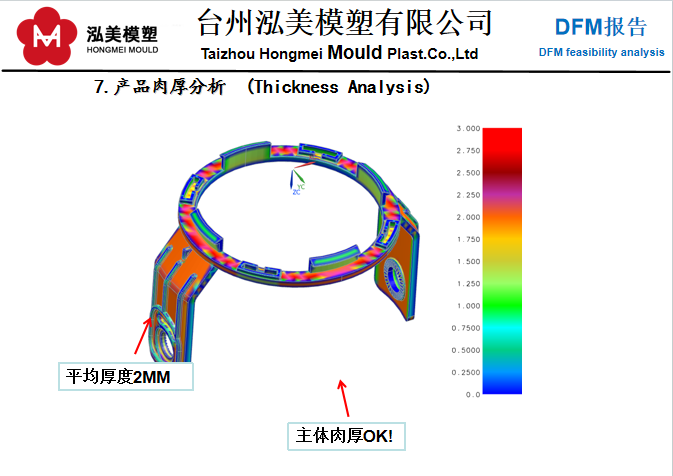

2.Wall thickness analysis

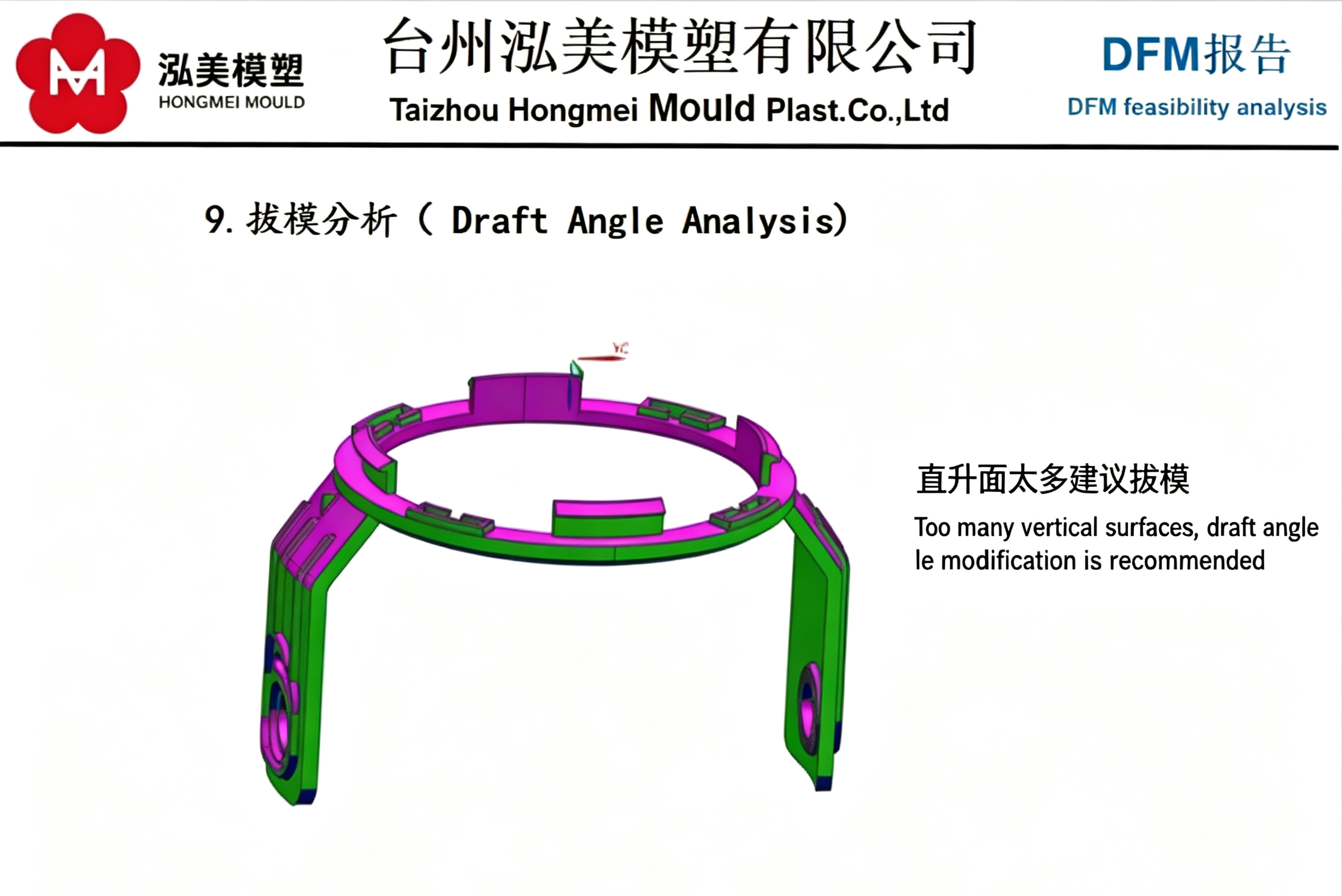

3.Draft angle analysis
4.Rib and boss evaluation
5.Undercut identification
6.Parting line recommendation
7.Gate location recommendation
8.Ejection strategy
9.Mold structure suggestions
10.Material and shrinkage considerations
11.Potential manufacturing risks
12.Recommended product modifications
For complex projects, DFM can also be combined with mold flow analysis. DFM focuses heavily on part geometry and mold feasibility, while mold flow analysis simulates how molten plastic fills and packs inside the mold. The two methods answer different engineering questions and can complement each other on demanding projects.
The best time for DFM analysis is before the production mold is manufactured.
Ideally, DFM should begin after the product concept has developed into a workable 3D design but before the final mold structure and tooling are approved. At this stage, product designers can still modify geometry, material, wall thickness, draft, and other features without physically changing the mold.
For a new automotive or household plastic product, the development sequence can be:
Product Concept → 3D Product Design → DFM Analysis → Design Optimization → Mold Design → Mold Manufacturing → Trial Molding → Mass Production
This sequence allows the plastic injection mold manufacturer to participate early in the project rather than only receiving finished product files after every major design decision has already been made.
Early engineering communication is especially useful for complex automotive components, large cosmetic parts, products with deep ribs or bosses, and designs with tight dimensional requirements.
Custom plastic injection molding projects often involve unique product structures, materials, appearance requirements, and production volumes. A standard mold solution cannot always be applied directly to every project.
A professional DFM analysis can help evaluate whether the proposed design matches the selected material, mold structure, production quantity, and quality requirements. The review can also identify opportunities to simplify mold construction without compromising the product's function.
For overseas customers working with a plastic injection mold manufacturer, DFM also provides a clear technical communication platform. Engineers can use marked-up 3D models, screenshots, and written recommendations to explain potential risks and proposed improvements before tooling begins.
The final objective is a balanced solution: a plastic part that meets the customer's functional and appearance requirements while remaining practical to manufacture, test, and produce at scale.
What is DFM in injection molding? DFM is an engineering approach that connects plastic product design with real-world injection molding requirements before the mold is manufactured.
A strong injection molding DFM review considers wall thickness, draft angles, ribs, bosses, undercuts, parting lines, gates, ejection, materials, and other design factors. By identifying potential problems during the design stage, DFM can help reduce tooling risks and create a clearer path from product development to mass production.
For automotive parts, household products, and other custom plastic components, working with an experienced plastic injection mold manufacturer from the early design stage can make the entire mold development process more efficient.
DFM in injection molding is the process of reviewing a plastic part design to ensure that the plastic part can be molded efficiently, consistently, and economically before the injection mold is manufactured.
DFM helps identify potential problems such as insufficient draft, uneven wall thickness, difficult undercuts, and unsuitable gate locations before tooling begins.
A DFM report can include wall thickness, draft angle, gate location, parting line, undercuts, ejection, ribs, bosses, material considerations, and recommended design modifications.
DFM analysis should ideally be performed before final mold design and tooling. Earlier review gives product designers more flexibility to make changes.
No. DFM mainly evaluates design and manufacturing feasibility, while mold flow analysis uses simulation to study plastic filling, packing, cooling, and potential molding behavior. The two analyses can be used together for complex projects.
DFM can help control tooling costs by identifying unnecessary mold complexity and design risks before mold manufacturing. The actual cost impact depends on product geometry, material, mold structure, production volume, and required quality.
