Why Are Plastic Molds So Expensive? (The Real Breakdown)

If you’ve ever requested a quote for a custom plastic injection mold and nearly dropped your coffee, you’re not alone.

It’s one of the most common questions buyers and product engineers ask us: "Why does a piece of metal cost thousands—or tens of thousands—of dollars just to make a plastic part?"

The short answer? You aren't just buying a block of metal; you are buying micro-inch precision, extreme durability, and complex engineering designed to make hundreds of thousands of identical parts flawlessly.

Here is the exact cost breakdown—and why investing in a quality mold actually saves you money long-term.

1. High-Precision Engineering & Mold Design

A plastic mold isn’t a hollowed-out block of steel; it’s a high-precision, multi-part machine. It houses cooling channels, ejection systems, core slides, and hot runner setups operating under extreme pressure.

Even a 0.01 mm miscalculation in wall thickness, draft angles, or gate location will cause part warping, sink marks, or flash.

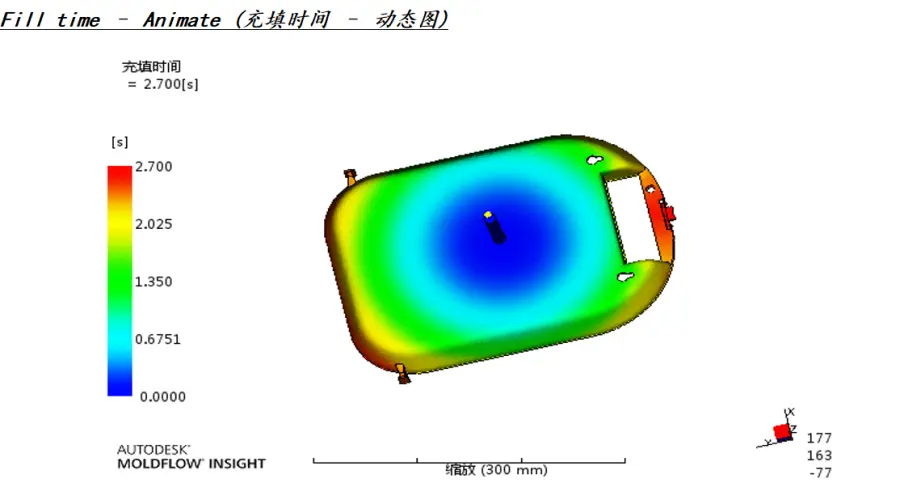

A significant portion of your initial investment goes into upfront Mould Design—using advanced Moldflow analysis software to simulate molten plastic behavior and solve structural flaws before any metal is touched.

2. Prototyping: Catching Mistakes Before Milling

Smart manufacturers don't jump directly into cutting hardened steel. Modifying a completed steel tool can cost thousands of dollars; modifying a digital model costs almost nothing.

Before committing to mass tooling, using 3D Printing & Prototyping allows you to test form, fit, and mechanical function in hand. Testing rapid prototypes ensures your part geometry is 100% optimized for mass production.

3. Tooling Steel & High-Speed CNC Machining

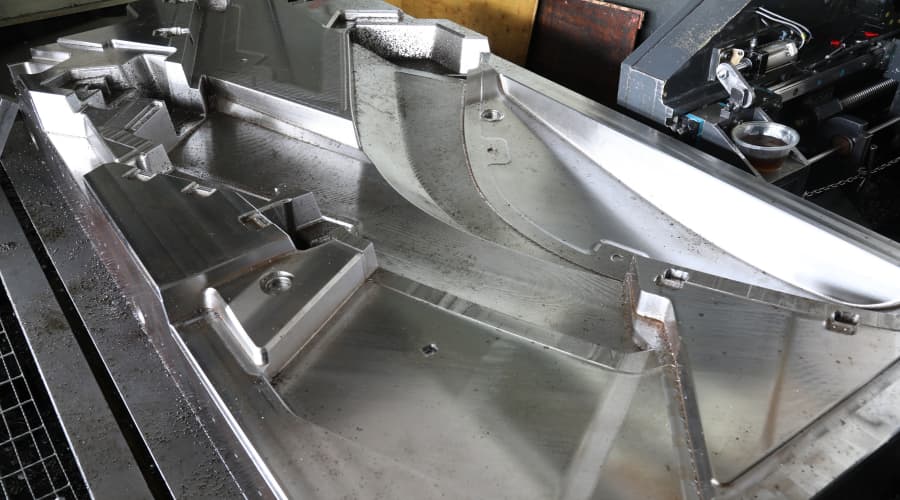

Molds are built to withstand tens (or millions) of high-pressure injection cycles. That requires premium, hardened steel alloys like NAK80, S136, or P20.

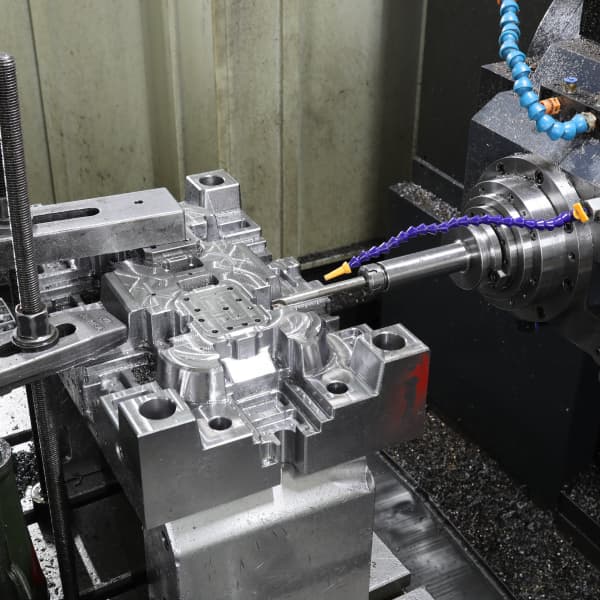

Carving these super-hard metals requires advanced CNC Machining and precision EDM (Electrical Discharge Machining) running continuously with sub-millimeter accuracy. You are paying for top-grade raw materials and hours of high-precision machine operating time.

4. Custom Toolmaker Craftsmanship

While machines do the heavy lifting, human expertise delivers the final quality. Skilled toolmakers manually polish, hand-fit, and assemble complex mold components to ensure zero-leakage parting lines.

The labor required varies significantly depending on the application:

• Automotive: Heavy-duty structure for Auto Parts Mould or precision-fit components for Motorcycle Parts Mould.

• Consumer Goods: High-gloss aesthetic finishes for Home Appliance Mould or high-volume durability for Household Product Mould.

Each application demands tailored steel hardness, surface texture, and runner configurations.

5. High Upfront Cost = Ultra-Low Unit Price

Here’s the key takeaway: a plastic mold is an asset, not just an expense.

The entire goal of initial Mould Manufacturing is to set up a smooth, high-speed Plastic Injection Moulding process. Once your mold is validated and running, it can spit out identical plastic parts in seconds for just cents per piece.

You pay upfront for the tool so your per-unit production cost stays remarkably low.

Frequently Asked Questions (FAQ)

Q1: How long does a custom plastic injection mold typically last?

Depending on the steel grade chosen, a quality mold can last anywhere from 100,000 shots (using pre-hardened steel like P20) to over 1,000,000 shots (using hardened steel like S136). High-grade steel and proper maintenance extend mold lifespan significantly.

Q2: What is the average lead time to build a plastic mold?

Standard lead time ranges between 3 to 8 weeks, depending on mold size, structural complexity, and surface finish requirements (e.g., high-gloss polishing or custom textures).

Q3: Can a mold be modified after it is made?

Yes, but only if material needs to be removed (steel-safe modifications). If you need to add material back to a mold, it requires specialized welding and re-machining, which is costly and time-consuming. This is why thorough Mould Design is essential.

Ready to Bring Your Product to Life?

Don't let upfront tooling costs hold back your next project. Our engineering team provides free DFM (Design for Manufacturability) reviews to help you optimize your part design and reduce tooling expenses without sacrificing quality.
