What Is Plastic Injection Molding? A Simple Guide To How Plastic Parts Are Made

Views: 0 Author: Lucky Publish Time: 2026-08-15 Origin: Site

Inquire

Plastic injection molding is one of the most widely used manufacturing processes for producing plastic parts at scale. From the dashboard in your car to the storage containers in your kitchen and the housings of electronic devices, countless everyday products are made this way.

This guide explains what plastic injection molding is, how the process works, what a mold is made of, the products it can create, its key advantages, and how to choose a reliable plastic injection mold manufacturer. Whether you are an engineer, product designer, or buyer looking for custom plastic parts, this article will give you a clear and practical understanding.

1. What Is Plastic Injection Molding?

Plastic injection molding is a manufacturing process that produces plastic parts by melting plastic pellets, injecting the molten material into a precision mold under high pressure, cooling it until it solidifies, and then ejecting the finished part.

The process relies on four core elements:

Plastic pellets — Raw thermoplastic or thermoset materials supplied in granular form.
Injection molding machine — The equipment that melts, injects, and holds the material under pressure.
Plastic injection mold — A high-precision tool (usually steel) that shapes the molten plastic into the desired form.
Heating, melting, injection, cooling, and ejection — The sequential steps that turn raw pellets into finished parts.

In simple terms, plastic injection molding converts plastic granules into consistent, high-quality parts by forcing molten plastic into a closed mold cavity. Once the plastic cools and hardens, the mold opens and the part is ejected. This cycle can be repeated thousands or even millions of times with high repeatability.

2. How Does the Plastic Injection Molding Process Work?

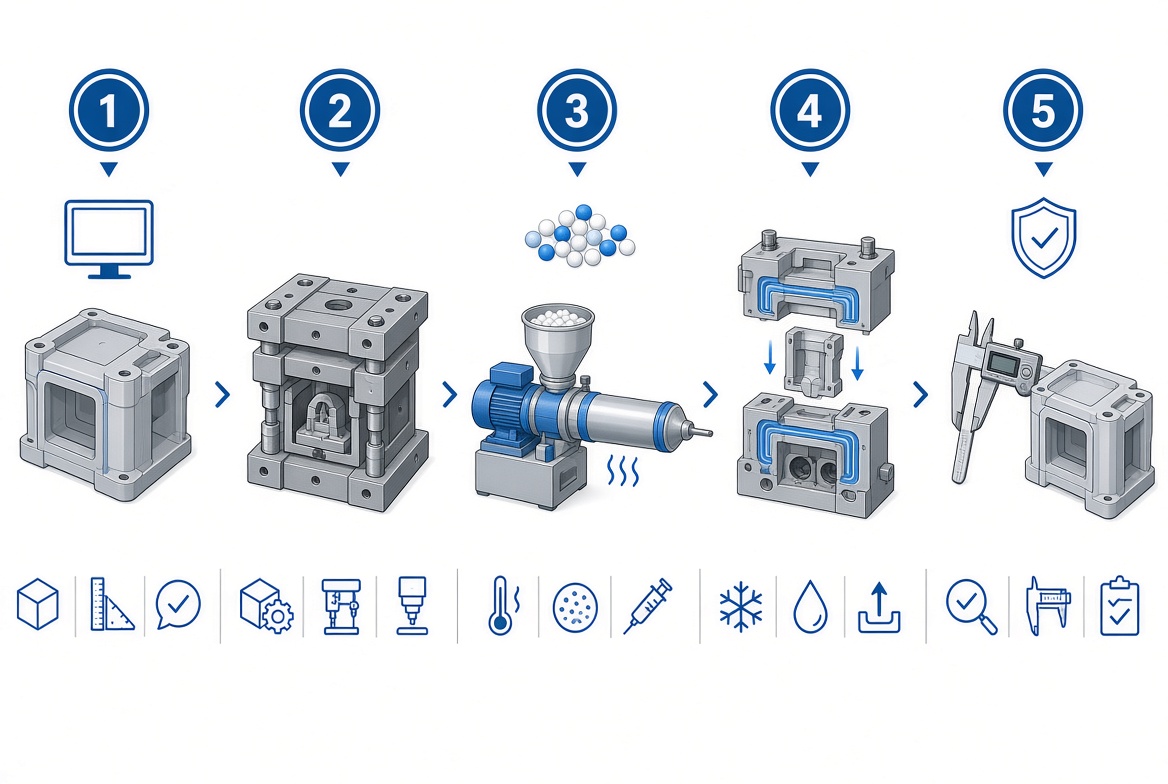

The plastic injection molding process follows a clear sequence from design to finished part. Here is a practical five-step overview:

Step 1: Product Design & DFM Engineers create or refine the 3D product design with Design for Manufacturability (DFM) in mind. Wall thickness, draft angles, undercuts, gate locations, and material flow are optimized early to avoid later production problems and reduce mold cost.

Step 2: Mold Design & Manufacturing Based on the approved part design, mold designers create the mold structure, including cavities, cores, cooling channels, runners, and ejection systems. The mold is then manufactured using CNC machining, EDM, grinding, and polishing. High-quality molds are typically made from hardened tool steel for long production life.

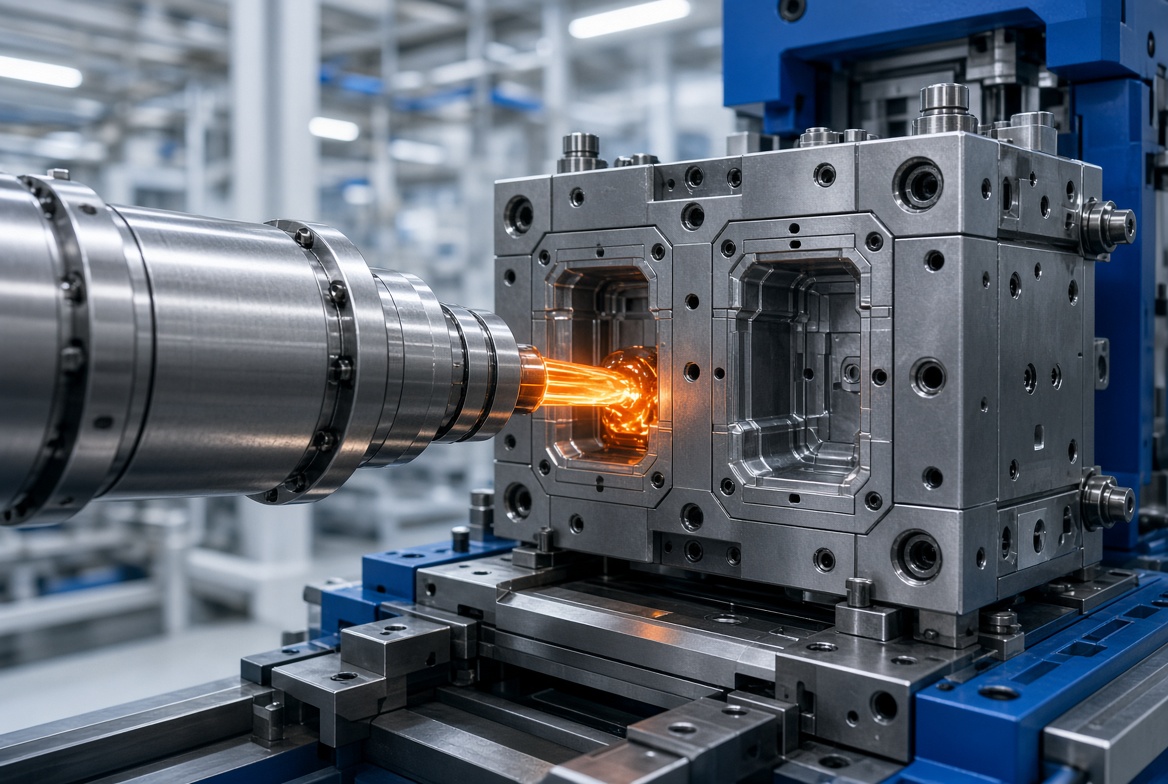

Step 3: Plastic Melting & Injection Plastic pellets are fed into the injection molding machine’s hopper, heated in the barrel until molten, and then injected under high pressure into the closed mold. The material fills the cavity completely, forming the shape of the part.

Step 4: Cooling & Ejection Cooling channels in the mold circulate water or oil to solidify the plastic quickly and evenly. After the part has cooled sufficiently, the mold opens and ejector pins push the finished part out.

Step 5: Quality Inspection Each batch undergoes dimensional checks, visual inspection, and functional testing. Only parts that meet the specified tolerances and appearance standards proceed to packaging or secondary operations.

This closed-loop process delivers high repeatability and is ideal for both medium and high-volume production of plastic parts.

3. What Is a Plastic Injection Mold and What Materials Are Used?

A plastic injection mold is a precision tool that defines the shape, surface finish, and dimensional accuracy of the finished plastic part. It consists of two main halves (cavity and core) that close under high pressure during injection.

Key structural elements include:

Mold cavity — Forms the outer surface of the part.
Mold core — Forms the inner surface or features.
Injection system (sprue, runners, gates) — Channels the molten plastic into the cavity.
Cooling system — Controls solidification speed and reduces cycle time.
Ejection system — Removes the finished part from the mold.

Common plastic materials used in injection molding include:

PP (Polypropylene) — Lightweight, chemical-resistant, widely used for household and packaging parts.
ABS — Tough, impact-resistant, excellent surface finish; common in automotive and consumer electronics.
PC (Polycarbonate) — High strength and transparency; used for optical and protective components.
PA (Nylon) — Good wear resistance and mechanical strength; suitable for functional and engineering parts.
PE (Polyethylene) — Flexible, chemical-resistant, often used for containers and lids.

Common mold steels:

P20 — Pre-hardened steel, good for medium-volume production.
718H — Improved toughness and polishability.
S136 — Stainless mold steel with excellent corrosion resistance and mirror finish capability.
H13 — High-hardness hot-work steel for high-volume or high-temperature applications.

Material selection for both the plastic and the mold depends on part requirements, expected production volume, surface finish needs, and budget.

4. What Products Can Be Made with Plastic Injection Molding?

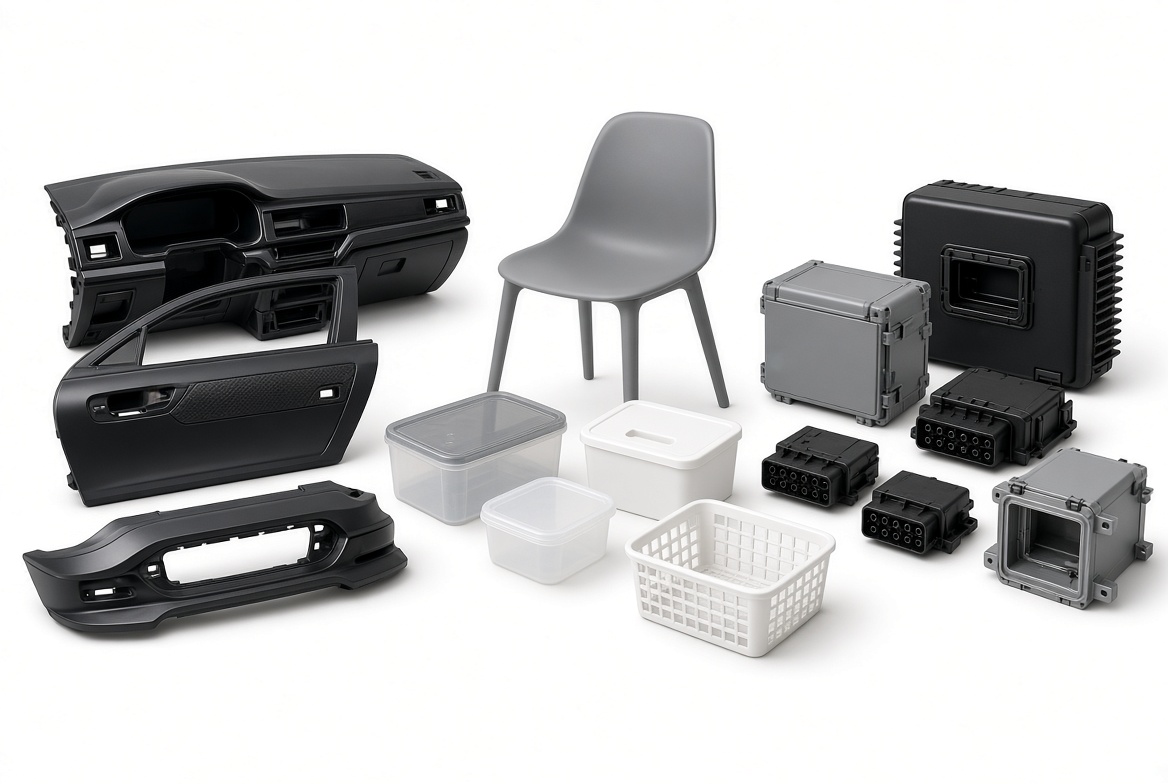

Plastic injection molding is extremely versatile. It produces parts ranging from simple containers to complex multi-feature components. Typical applications fall into three main categories:

Automotive Plastic Parts Dashboard components, door panels, center consoles, bumpers, interior trim, clips, and functional housings. The process delivers the strength, dimensional stability, and surface quality required by the automotive industry.

Household Plastic Products Plastic chairs, buckets, storage boxes, containers, kitchenware, and appliance housings. High-volume production and consistent appearance make injection molding ideal for consumer goods.

Industrial Plastic Parts Electrical housings, connectors, enclosures, gears, functional mechanical components, and custom industrial fittings. These parts often require tight tolerances, specific material properties, and reliable performance under demanding conditions.

Custom plastic injection molding also supports medical device housings, consumer electronics, toys, and packaging components. The ability to produce complex geometries in a single shot is one of the process’s greatest strengths.

5. What Are the Advantages of Plastic Injection Molding?

Plastic injection molding offers several clear advantages for manufacturers and product developers:

High production efficiency — Once the mold is ready, cycle times are short and output is high.
Consistent product quality — Parts from the same mold maintain tight dimensional and visual consistency.
Complex product designs — Undercuts, thin walls, ribs, bosses, and multi-feature geometries can be molded in one cycle.
Competitive unit cost — Although mold investment is higher upfront, the cost per part drops significantly at volume.
Wide material selection — Hundreds of thermoplastic grades (and some thermosets) can be processed.
Suitable for mass production — Ideal for runs from thousands to millions of parts.

These benefits make plastic injection molding the preferred method when quality, repeatability, and cost-effectiveness at scale are required.

6. How to Choose a Plastic Injection Mold Manufacturer?

Selecting the right plastic injection mold manufacturer has a direct impact on part quality, lead time, and total project cost. Key factors to evaluate include:

Manufacturing experience and industry track record
Mold design capability and DFM support
CNC machining, EDM, and polishing equipment
Quality control systems and inspection capability
Trial molding (T0/T1) and fine-tuning process
Delivery reliability and production capacity
Technical support throughout the project lifecycle

A capable partner will guide you through the full process: Product Analysis → DFM → Mold Design → Manufacturing → Trial Molding → Delivery. Look for manufacturers that provide transparent communication, detailed mold flow analysis when needed, and clear documentation at each stage.

FAQ

1. What is plastic injection molding? It is a process that melts plastic pellets and injects the molten material into a mold under high pressure to form solid plastic parts.

2. How does plastic injection molding work? The process includes product design and DFM, mold design and manufacturing, melting and injection of plastic, cooling and ejection, and final quality inspection.

3. How long does an injection mold last? A well-designed and properly maintained steel mold can produce hundreds of thousands to several million parts, depending on the steel grade, part complexity, and production conditions.

4. How much does a plastic injection mold cost? Mold cost varies widely based on size, complexity, number of cavities, steel grade, and required surface finish. Simple single-cavity molds start lower; complex multi-cavity or high-precision molds cost more. A detailed quotation requires the part design and volume requirements.

5. What materials can be used for plastic injection molding? Common materials include PP, ABS, PC, PA (nylon), PE, and many engineering plastics. Material selection depends on mechanical, thermal, chemical, and appearance requirements.
